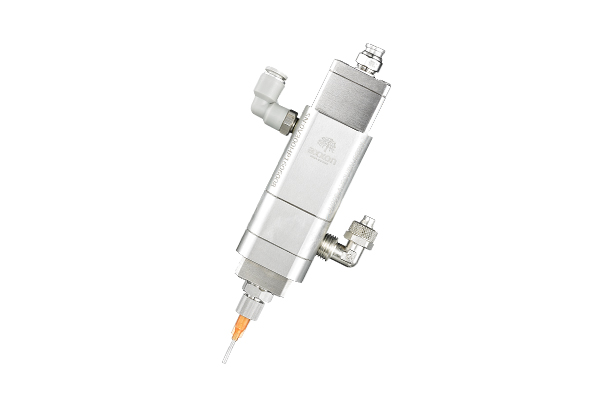

High-pressure valve for progressing cavity pump systems
The Axxon V-300HP high pressure valve dispenses medium- to high-viscosity fluids.
The unique stainless steel balance shaft structure design ensures a dispensing stability under high pressure. Powerful suck back function ensures a clean material cut off from the needle and provides a consistent dispensed dot or bead.
Product Features
Features and advantages
• Adjustable suck back, clean material cut off
• Controlled fluid volume at the beginning and end
• All stainless steel construction for durability
• Dual airway design, quick opening and closing
• Easy disassembly and maintenance
Compatible fluids
• Lubricating Oil • RTV Silicone • Epoxy • Polyurethane • Thermally Conductive Grease
Specifications
|
Specification |
V-300HP |
|
Size(LxWxH) |
72x34x151.8mm |
|
Weight |
880g |
|
Viscosity range |
10,000~1,000,000cps |
|
Fluid output |
5L/min |
|
Min drive air pressure |
70psi |
|
Max fluid air pressure |
3000psi |
|
Max operating frequency |
400cycles/min |
