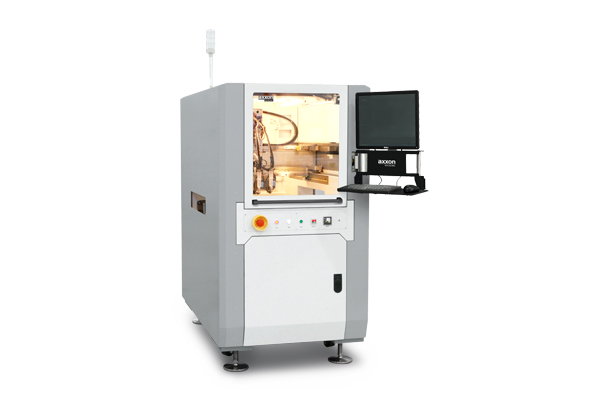

Dual Y drive with linear motor inline high-speed dispensing system
The MYD80 machine uses dual-drive linear motors, providing it with faster speed and higher precision, widely used in the precision SMT and semiconductor industries.
Download
Product Features
OPTIONAL CONFIGURATIONS
• Flip Chip Underfill • Dome Coating • Solder Paste Dispensing For MEMS • No-Flow Underfill
• Dam&Fill-COB Package • Glob Top-COB Package • Solder Paste • SMA • Silver Paste Dispensing
• Tim Dispensing • Wafer Underfill • Flux Dispensing
Specifications
|
Specification |
MYD80 |
|
Power supply |
AC 200~240V,1.8kW,8A,50/60Hz （Without conveyor heating） |
|
Air supply |
90psi(6bar) |
|
Dimension |
900x1500x1650mm(WxDxH) |
|
Weight |
1730kg |
|
Standard compliance |
CE,SEMI S2 |
|
Dispense area |
|
|
Max dispensing area (single lane/dual lane) |
470x510mm/470x230mm(WxD） |
|
Synchronized dual valve – automatic adjustment (single lane/dual lane) |
420x400mm/420x165mm(WxD） |
|
Asynchronized dual valve (single lane/dual lane) |
390x430mm/390x190mm(WxD） |
